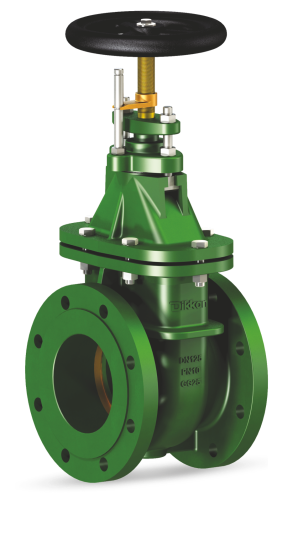

Gate Valve Non Rising Stem F4 Type With Indicator
Gate Valve
-
Cast Iron
-
Bronze
-
F4 Type
Technical Specifications
Standard | DIN EN 1171 (DIN 3352 T2) – with indicator |
Face to Face | EN 558 Series 14 (DIN 3202 F4) |
Flange Dimension | DIN Flanges acc. to EN 1092-2/B (DIN 2501) |
Flange Connection | PN10 |
Options | Drain plug, double threaded stem, chainwheel, gearbox, electrical actuator, top flange for actuator assembly Special flange drilling acc. to ANSI or JIS, flat faced flanges |
- Cast Iron Dikkan gate valves with bronze seats, raised face flanges acc. to DIN, bolted bonnet and adjustable gland and short face to face. Inside screwed stem, non-rising stem and handwheel.
- Application: Cold and hot water, fresh water, seawater, lubricating oil.
