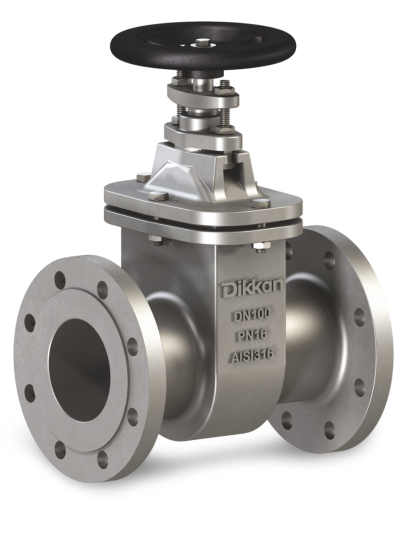

Gate Valve Non Rising Stem F5 Long Type
Gate Valve
-
Stainless Steel
-
Stainless Steel
-
F5 Long Type
Technical Specifications
| Standard | DIN 3352 T2 |
| Face to Face | EN 558 Series 15 (DIN 3202 F5) |
| Flange Dimension | DIN Flanges acc. to EN 1092-1/B (DIN 2501) |
| Flange Connection | PN16/25 |
| Options | Drain plug, double threaded stem, chainwheel, gearbox, electrical actuator, top flange for actuator assembly Special flange drilling acc. to ANSI or JIS, flat faced flanges |
- Stainless Steel Dikkan gate valves with stainless steel seats, raised face flanges acc. to DIN, bolted bonnet and adjustable gland and short face to face.Inside screwed stem, non-rising stem and handwheel.
- Application: Cold and hot water, fresh water, seawater, lubricating oil.
