Globe Valves Straight Stop With Iso Top Flange
Globe Valve
-
Ductile Iron
-
Bronze
-
Straight
Technical Specifications
| Standard | DIN 86251 Stop Type (DIN 3356) |
| Face to Face | EN 558 Series 1 (DIN 3202 F1) |
| Flange Dimension | DIN Flanges acc. to EN 1092-2/B (DIN 2501) |
| Flange Connection | PN 10/16 |
| Options | Gearbox, Actuator |

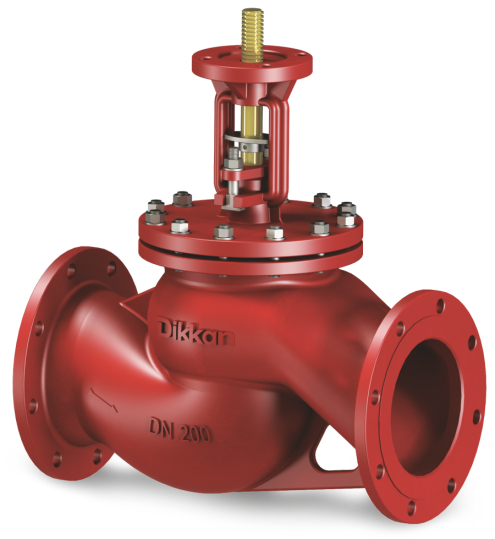

- Ductile Iron Dikkan globe valves with bronze or stainless steel trim, bolted bonnet, outside screw & yoke, indicator and raised face flanges according to DIN. Top flange according to ISO 5210 for multi turn electrical actuator or gearbox assembly.
- Application: Hot and cold water, oil and steam
