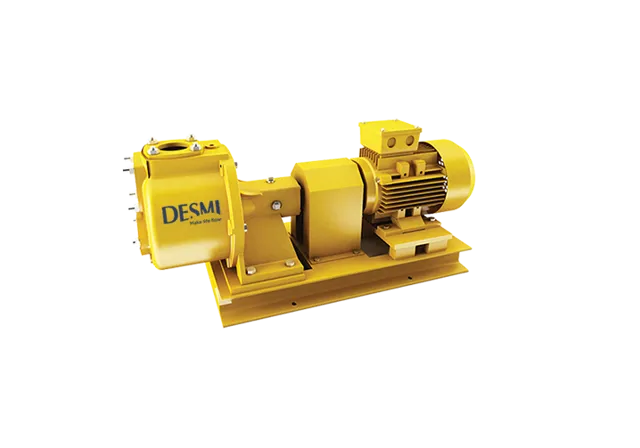

A new generation of dirty water vacuum pumps
Based on the principle of the liquid ring system. This compact pump combines all performances of diaphragm, piston and centrifugal pumps and will pump continuously, by means of the specially developed rotor, on liquids, air or gasses in any mixture.
- (Emergency) bilge pump
- Bilge-ballast pump
- General service pump
- Vacuum pump
- Gland-leaking water pump
- For chemical industries
- Draining holds
- Emptying vessels
- Well point systems
Advantages VAC-2000
- Enormous air capacity
- Wear-resistant
- Dry-running protection
- For direct or V-belt drive
- No diaphragms
- Low weight
- Compact design
- Also operating without non-return valve
Design Features
Free rotating stainless rotor, stainless steel rotor housing, stainless steel wear plate. Protected against dry-running by oil lubricated seal.
| Nominal diameter (DN) | 65 to 100 |
| Flow rate – 50 Hz | Up to 70 m³/h (300 US gpm) |
| Flow rate – 60 Hz | Up to 70 m³/h (300 US gpm) |
| Head | Up to 19 m (60 ft) |
| Pressure | Up to 3.5 bar (50 psi) |
| Temperature | Up to 80°C (176°F) |
| Motor | Standard and EX motors |
| VFD | Direct or Bulkhead/Wall-mounted |
