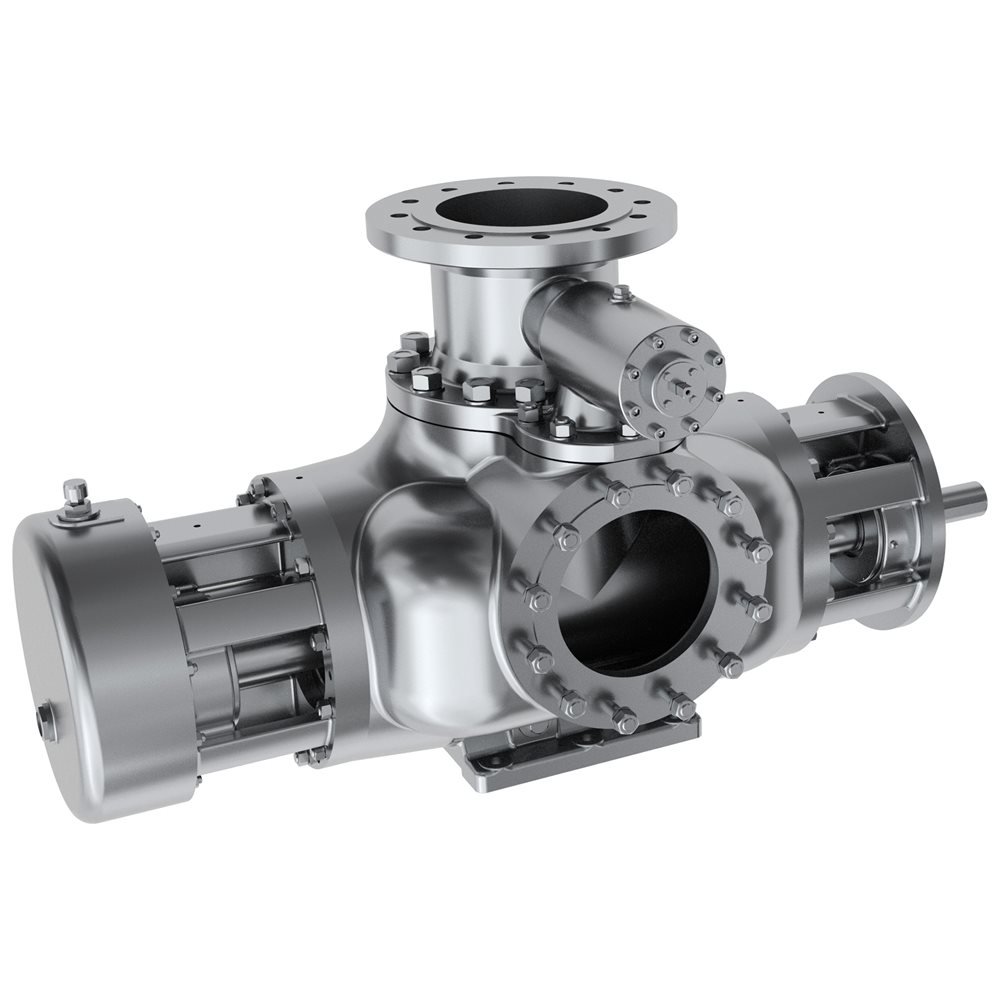

Self-priming rotary displacement pumps in a compact range with external bearings without touching medium. For aggressive media also.
Advantages
- Wide range of applications
- Self-priming
- Pumped capacity proportional to speed
- Compact construction
- Direct drive without speed-reducer possible
- Change of pumping direction – simple
- Pumping elements – simple to replace
- Easy maintenance
- For almost all media and fluids
- High viscosities possible
- Low pulsations
- Low noise level
- Dry running possible
- Constant flow on varying pressures and volumes
- Very good suction performance up to NPSH 1 – 1,5 m/3 – 5 feet
- Engineered 2-piece shaft and screw construction
- Capacity: 10 – 2,800 m³/hn(50 – 12,300 gpm)
- Differential pressure: up to 40 / 60 bar (600 / 900 psi)
- Speed range: up to 3.600 min-1 (rpm)
- Viscosity: 0,5 – 200,000 mm²/s (cSt)
- Max. temperature: 350°C (660°F)
- Heating foot (optional)
