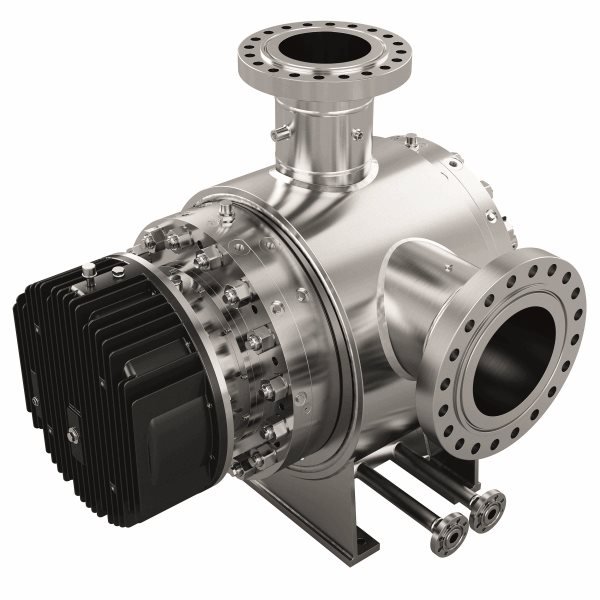

The HP pump is designed with external bearings and timing gears lubricated with clean lube oil. External lube oil or cooling systems are not required what keeps the system as simple as possible and subsequently increases the reliability of the system.
- Complete Pipeline Evacuation
- Handling of some (minor) gas fractions
Advantages
- Self-priming
- Compact construction
- Change of pumping direction – simple
- Pumping elements – simple to replace
- Easy maintenance
- For almost all media and fluids
- High viscosities possible
- Low pulsations
- Low noise level
- Dry running possible
- Constant flow on varying pressures and volumes
- Very good suction performance up to NPSH 1 – 1,5 m/3 – 5 feet
- Capability of handling non-dedicated fluids or fluid with changing characteristics
- No external cooling required
- Contact-free intermeshing screws
- Capacity: 20 – 1,500 m³/h (100 – 6,600 gpm)
- Differential pressure: up to 100 bar (1,500 psi)
- Viscosity: 1 – 10,000 mm²/s (cSt)
- Max. temperature: 120°C (250°F)
