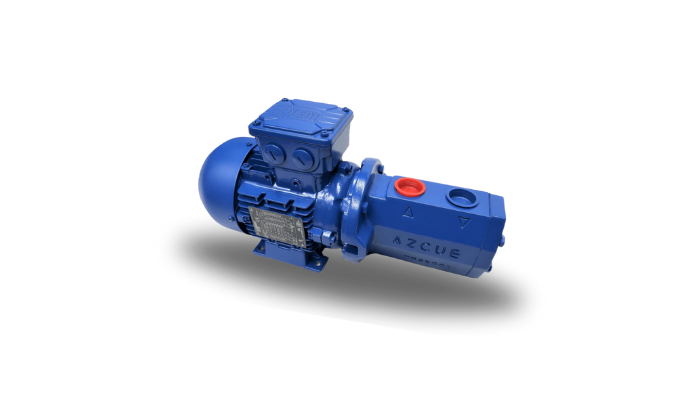

Azcue BT

The Azcue BT Screw Pump is a true champion of efficient and gentle fluid transfer. This positive displacement pump utilizes a unique three-screw design that offers a multitude of advantages, making it an ideal choice for various applications in the marine, industrial, and agricultural spaces.

Performance and Output

Flow rates:The BT Screw Pump can handle a wide range of flow rates, typically ranging from 0.1 m³/h to 100 m³/h (26.42 GPM to 26,417 GPM).

Head: The pump can also achieve a significant head, typically ranging from 10 meters to 100 meters (32.8 ft to 328 ft).

Viscoscity The BT Screw Pump is well-suited for handling viscous fluids, with a maximum viscosity range of up to 10,000 cP.

Differential pressure: The pump can handle a differential pressure of up to 10 bar (145 psi).

Key Features

Self priming: Eliminates the need for external priming equipment, simplifying installation and operation.

Positive displacement: Ensures consistent flow regardless of pressure or viscosity, making it ideal for handling sensitive fluids.

Low shear forces: Minimizes product degradation and maintains product integrity, crucial for handling delicate liquids like food products and pharmaceuticals.

High efficiency: Achieves optimal performance with low energy consumption, leading to cost savings.

Screw Pump
