Marine Engine Fuel Injection System

Marine Engine Fuel Injection System

Category: Brand: , , , , , , , , , , , , , ,

Here’s a concise summary of marine engine fuel injection systems, in English.

A marine engine’s fuel injection system is a critical component that directly impacts engine power, efficiency, and emissions. Its job is to deliver a precisely timed and atomized spray of fuel into the cylinder.



Core Components



  • Fuel Pump: Pressurizes the fuel. This can be a separate pump for each cylinder (jerk pump) or a single pump for a common rail system.

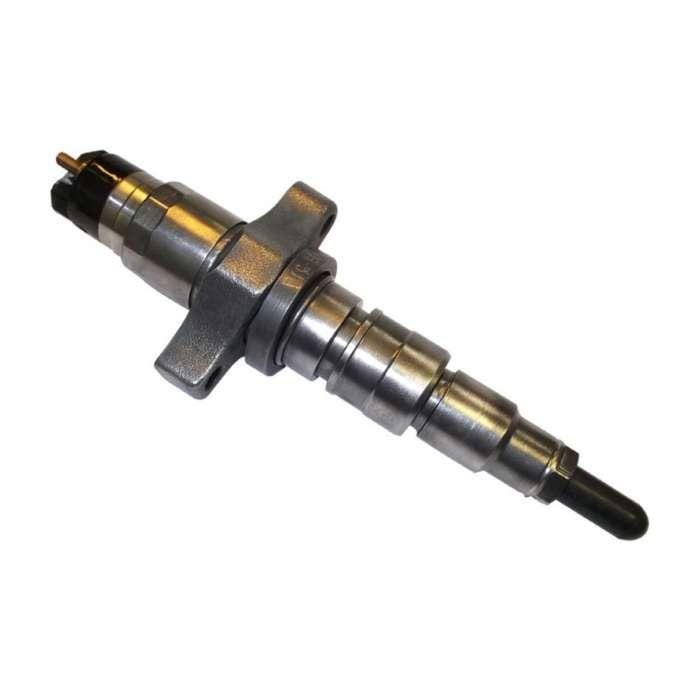

  • Fuel Injector (Nozzle): Sprays the pressurized fuel into the cylinder as a fine mist.
  • Fuel Lines: High-pressure pipes that carry fuel from the pump to the injector.
  • Filters and Heater: Clean the fuel and heat heavy fuel oil (HFO) to reduce its viscosity.



Main Types of Fuel Injection Systems



  1. Common Rail System:
    • How it Works: Fuel is held at extremely high pressure in a common rail. Electronic injectors, controlled by an ECU, precisely time and spray the fuel.
    • Advantages: Offers the highest efficiency and lowest emissions due to constant high pressure and flexible electronic control.
  2. Jerk Pump System (Pump-Line-Nozzle):
    • How it Works: A separate mechanical pump for each cylinder is driven by the engine’s camshaft.
    • Advantages: Simple, robust, and durable. Easy to maintain.
    • Disadvantages: Injection pressure is dependent on engine speed, offering less control than electronic systems.
  3. Unit Injector System (UI):
    • How it Works: The pump and injector are combined into a single unit per cylinder, often driven directly by the camshaft.
    • Advantages: Achieves very high injection pressures by eliminating high-pressure lines. Electronic versions (EUI) offer precise control.



Key Manufacturers



  • Engine Builders: Companies like MAN, Wärtsilä, Caterpillar (Cat) / MaK, Yanmar, and Cummins produce their own integrated systems.
  • Specialist Suppliers: Brands like Bosch, L’Orange, Duap, Denso, and Woodward manufacture high-quality injectors, pumps, and control systems for a wide range of engines.



Maintenance



Routine maintenance is vital. Common issues include clogged injectors, worn pump components, and fuel line leaks. Regular replacement of fuel filters and injector service are essential for reliable operation.





We offer an extensive range of marine engine brands and their associated spare parts, providing comprehensive solutions for both main propulsion and auxiliary power needs across diverse vessel types. Our supply capability covers various generations and models, ensuring support for a wide array of marine applications.



Featured Brands and Engine Series/Models:



SULZER:

  • Two-Stroke Engines:
    • RD/RND Series: RD68, RND76, RND76M, RND90, RND90M (Classic large-bore, low-speed engines, still in operation).
    • RLA/RLB Series: RLA(B)56, RLA(B)66, RLA(B)76, RLB90 (Developed two-stroke designs).
    • RTA/RT-Flex Series: RTA38, RTA48(T), RTA52, RTA58, RTA62, RTA72, RTA76, RTA84, RTA84M, RTA84C, RTA96 (Modern, fuel-efficient, electronically controlled two-stroke engines).
  • Four-Stroke Engines:
    • Z Series: ZL40/48, 16ZAV40S (Medium-speed engines).
    • RF Series: RF44, RF56 (Often used for auxiliary power or generator sets).
    • TAD Series: TAD36, TAD48 (For specific applications).

MAN (including pre and post-MAN B&W models):

  • Two-Stroke Engines (KZ, KSZ, K, L, S, MC/MC-C, ME/ME-C): 40/54A, 52/90N, 57/80C, KZ57/80F, KSZ70/125, KSZ78/155, 90/160A, 52/55L, 58/64, 90/190C, L60/105E, 70/120E, 70/125C, L, KSZ78/155A, KSZ70/125B, L52/55A, 40/45 (A broad spectrum covering main propulsion and auxiliary engines).

B&W (Burmeister & Wain – prior to MAN B&W merger):

  • MC/MCE Series: L35MC, L60MC, L80MC, L55GFCA, L80GFCA, L80GB, 74VT2BF, K62EF, K74EF, K84EF, K45GFC, K67GFK, K80GFK, K90GFS, 45HU, L70MC (Various generations of two-stroke diesel engines).
  • MC-C/ME-C Series: L50MC, S60MC, S70MC, K80MC, S80MC, K90MC-C, L67GFCA, L90GB (Electronically controlled and conventional two-stroke engines).
  • VT2BF/EF Series: 50VT2BF, 62VT2BF, K84EF (Older models still in service).

MITSUBISHI:

  • UEC/UET Series: UEC37L/LA/LS, UEC45HA, UEC60L/LA/LS, UEC45L/LA/LS, UET45/75C, UEC52/125H, UEC52L/LA/LS, UET45/80D, UEC52/90D, UEC(T)52/105D, UEC45/115H, UEC37/88H, UEC37H (Mitsubishi’s proprietary two-stroke and some four-stroke engine series).

PIELSTICK:

  • PA Series: PA6, PC3, PC2-2, IHI PC2-5, PC4, PC2-6, PC4-2L, PC4-570, PA5 (High-speed, compact four-stroke engines, commonly used for generator sets or auxiliary propulsion).

AKASAKA:

  • UET/UEC/DM/AH Series: UET45/80D, UEC52/105D, DM51SS, UEC 60/150H, UEC 60H, A31, A34, A37, A41, AH27, AH28, AH30, AH36, AH38, AH40, DM30, DM36, DM38, DM46, DM47 (A prevalent engine brand, particularly in Japanese-built vessels).

DEUTZ:

  • RBV/TBD/BVM Series: RBV8M358, RBV8M540, RBV16M640, TBD620L6, BVM350, BVM540, BF6M716 (Various four-stroke medium- and high-speed diesel engines for auxiliary and smaller main propulsion applications).

HANSHIN:

  • EL/LH/LU/LUN/LUD/LUS Series: EL30, EL32, EL35, EL40, EL44, LH28RG, LH31G, LU28(A,R,G), LU32, LU35, LU38, LU46(A), LU50, LU54, LUN28, LUN30, LUD32, LUD35, LUS38 (Another significant engine brand commonly found in Japanese vessels).

NIIGATA:

  • MG/M Series: MG40X(EX), M34X, 6M28BF, TM31X (Medium-speed diesel engines, typically used in small and medium-sized vessels).

MAK:

  • M/MU/AK/AKM Series: M332, M453AK, MU551AK, MU552AK, M601, MU452AK, 451AK, 6M453AK, 9M453C, 6M601C, 8M601 (Medium-speed four-stroke engines, widely used in various marine applications).

WARTSILA:

  • 20/22/26/32/38/46/GD/TKR Series: 22, 32, 31, 26, 20S, 28, 38, 46, 32GD, 46GD, 14, TKR22, HFR-V32, NOHAB (Wärtsilä’s broad portfolio of medium- and high-speed diesel engines for main propulsion, auxiliary, and generator sets).

DAIHATSU:

  • PS/PKT/DS/DL/DK/PL Series: PS-18, PS-22, PS-20, PS-26, PS-30, PKT-14, PKT-16, PKTD-16, DS-18, DS-22, DS-26, DS-28, DS-32, DL-14, DL-16, DL-19, DL-20, DL-22, DL-24, DL-26, DK-20, PL-24 (Compact and reliable engines primarily used for auxiliary power and generator sets).

CUMMINS:

  • BT/CT/NT/KTA/QSK/QSM Series: 4BT3.9, 6BT(A)5.9, 6CT8.3, NT(A)855, N14, KTA19, KTA38, KTA50, QSK19, QSM11 (Robust and durable engines for marine auxiliary power, generator sets, and some smaller main propulsion applications).

CATERPILLAR:

  • 3000/3100/3300/3400/3500/3600 Series & C Series: 3054, 3056, 3066, 3106, 3126, 3306, 3406, 3408, 3412, 3508, 3512, 3516, 3606, 3608, 3612, 3616, 3618, C1.5, C2.2, C7, C9, C10, C12, C15, C16, C18, C30, C32 (Reliable and widely used engines across a vast range of main propulsion, auxiliary, and generator set applications).

SCANIA:

  • DI Series: DI 09, DI 13, DI 16 (High-performance diesel engines designed for marine applications, typically used as auxiliary and smaller main propulsion engines).
