Easy ECM – Easy to install. Easy to program.

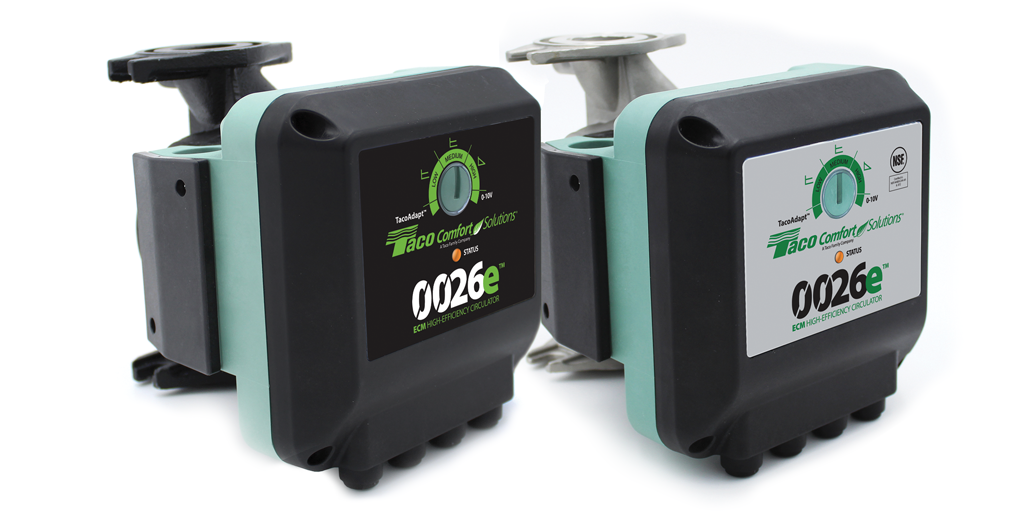

The 0026e ™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.
Max. Shut-off Head: 26 ft
Max. Flow: 44 gpm
Max. Pressure: 150 psi (10.3 bar)
Max. Temp: 230° F (110° C)
Min. Temp: 14°F (-10°C)
Voltage: 115/208/230V, 50/60Hz Single phase
Operating Power Range: 10 -125W
Max. AMP: 1.05A
Flange-to-flange: 6 ½”
